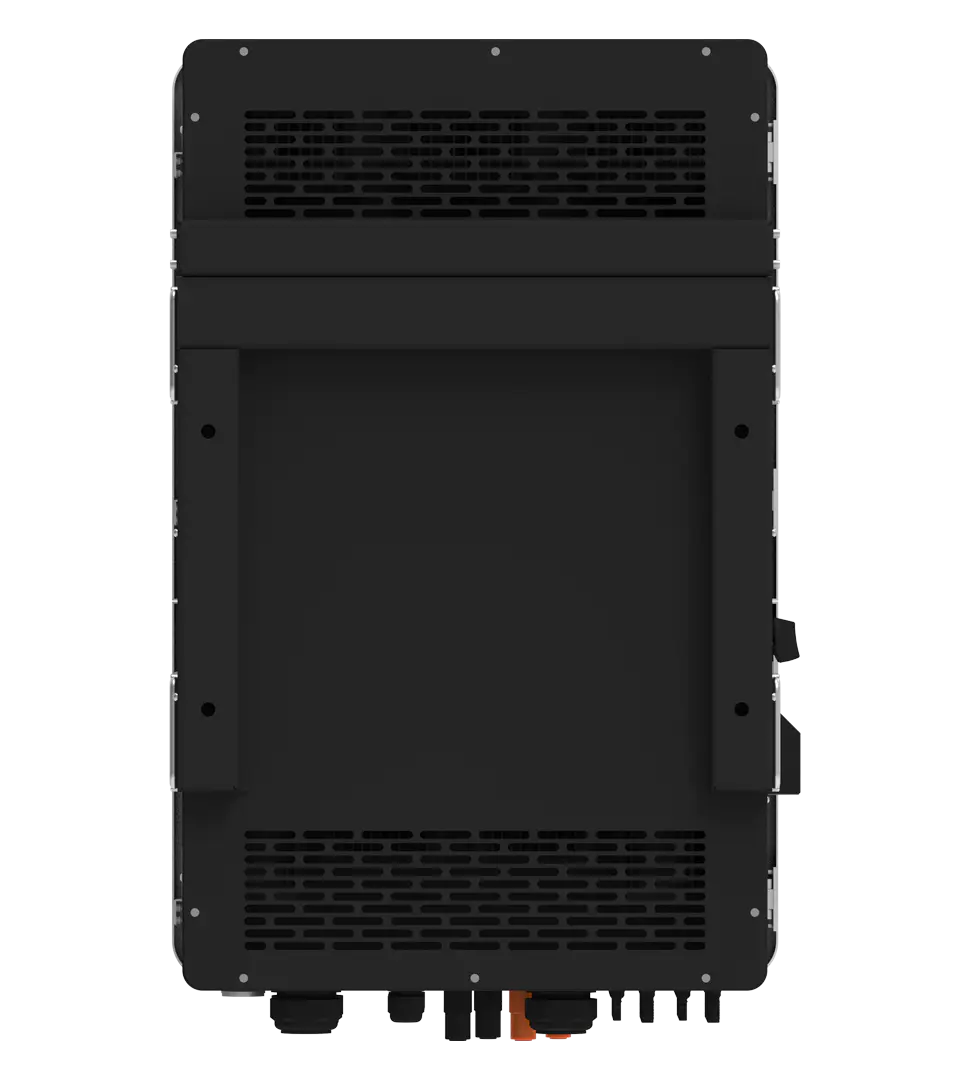

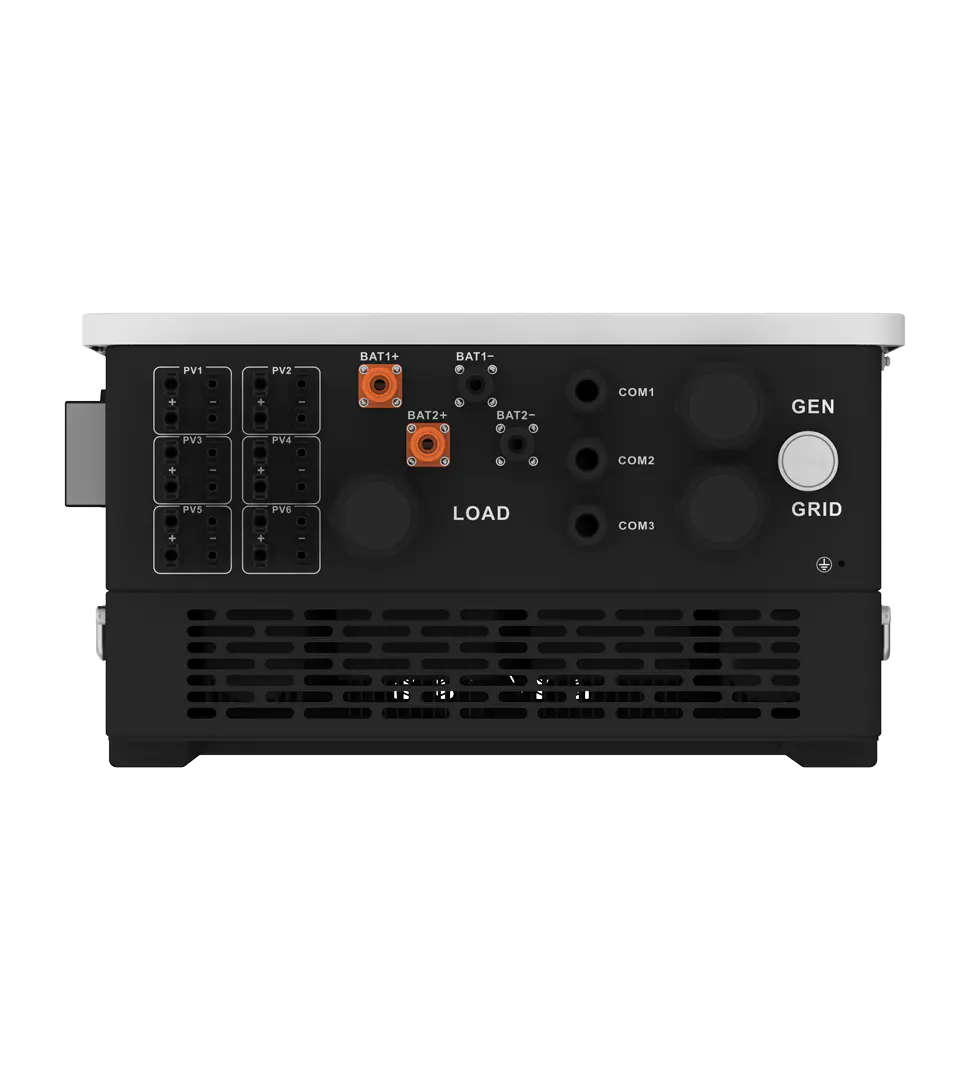

SUN-60/70/75/80K-SG02HP3 | Three Phase HV

Three Phase Hybrid Inverter | 60-80kW | 6 MPPT | HV Battery Supported

Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • 100% unbalanced output
  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 160A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator

Need Help? Let’s Get in Touch

Categories: , , , , Tags: , , , , , , , Brand:

Description





Product Specification

Model SUN-60K-SG02HP3-EU-EM6 SUN-70K-SG02HP3-EU-EM6 SUN-75K-SG02HP3-EU-EM6 SUN-80K-SG02HP3-EU-EM6
Battery Input Data
Battery Type Lithium-ion Lithium-ion Lithium-ion Lithium-ion
Battery Voltage Range (V) 160-1000 160-1000 160-1000 160-1000
Max. Charging Current (A) 80+80 80+80 80+80 80+80
Max. Discharging Current (A) 80+80 80+80 80+80 80+80
Charging Strategy for Li-ion Battery Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS
Number of Battery Input 2 2 2 2
PV String Input Data
Max. PV Access Power (W) 120000 140000 150000 160000
Max. PV Input Power (W) 96000 112000 120000 128000
Max. PV Input Voltage (V) 1000 1000 1000 1000
Start-up Voltage (V) 180 180 180 180
MPPT Voltage Range (V) 150-850 150-850 150-850 150-850
Rated PV Input Voltage (V) 650 650 650 650
Max. Operating PV Input Current (A) 36+36+36+36+36+36 36+36+36+36+36+36 36+36+36+36+36+36 36+36+36+36+36+36
Max. Input Short-Circuit Current (A) 54+54+54+54+54+54 54+54+54+54+54+54 54+54+54+54+54+54 54+54+54+54+54+54
No. of MPP Trackers / Strings per Tracker 6 / 2+2+2+2+2+2 6 / 2+2+2+2+2+2 6 / 2+2+2+2+2+2 6 / 2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W) 60000 70000 75000 80000
Max. AC Input/Output Apparent Power (VA) 66000 77000 82500 88000
Rated AC Input/Output Current (A) 91/87 106.1/101.5 113.7/108.7 121.3/115.9
Max. AC Input/Output Current (A) 100/95.7 116.7/111.6 125/119.6 133.4/127.6
Max. Continuous AC Passthrough (grid to load) (A) 200 200 200 200
Peak Power (off-grid) (W) 1.5 times of rated power, 10s 1.5 times of rated power, 10s 1.5 times of rated power, 10s 1.5 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un 220/380V, 230/400V 0.85Un-1.1Un 220/380V, 230/400V 0.85Un-1.1Un 220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range (Hz) 50/45-55, 60/55-65 50/45-55, 60/55-65 50/45-55, 60/55-65 50/45-55, 60/55-65
Grid Connection Form 3L+N+PE 3L+N+PE 3L+N+PE 3L+N+PE
Total Current Harmonic Distortion (THDi) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power)
DC Injection Current <0.5% In <0.5% In <0.5% In <0.5% In
Efficiency
Max. Efficiency 98.70% 98.70% 98.70% 98.70%
Euro Efficiency 98.1% 98.1% 98.1% 98.1%
MPPT Efficiency >99% >99% >99% >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC)
Interface
Communication Interface RS485/RS232/CAN RS485/RS232/CAN RS485/RS232/CAN RS485/RS232/CAN
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN (optional) GPRS/WIFI/Bluetooth/4G/LAN (optional) GPRS/WIFI/Bluetooth/4G/LAN (optional) GPRS/WIFI/Bluetooth/4G/LAN (optional)
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating -40 to +60℃, >45℃ Derating -40 to +60℃, >45℃ Derating -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100% 0-100% 0-100% 0-100%
Permissible Altitude 3000m 3000m 3000m 3000m
Noise (dB) ≤65 dB ≤65 dB ≤65 dB ≤65 dB
Ingress Protection (IP) Rating IP65 IP65 IP65 IP65
Inverter Topology Non-Isolated Non-Isolated Non-Isolated Non-Isolated
Over Voltage Category OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC)
Cabinet Size (W × H × D mm) 606 × 927 × 314 606 × 927 × 314 606 × 927 × 314 606 × 927 × 314
Weight (kg) 105.0 105.0 105.0 105.0
Type of Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling
Warranty 5 Years / 10 Years (The warranty period depends on the final installation site of the inverter. For more info, please refer to the Warranty Policy)
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
