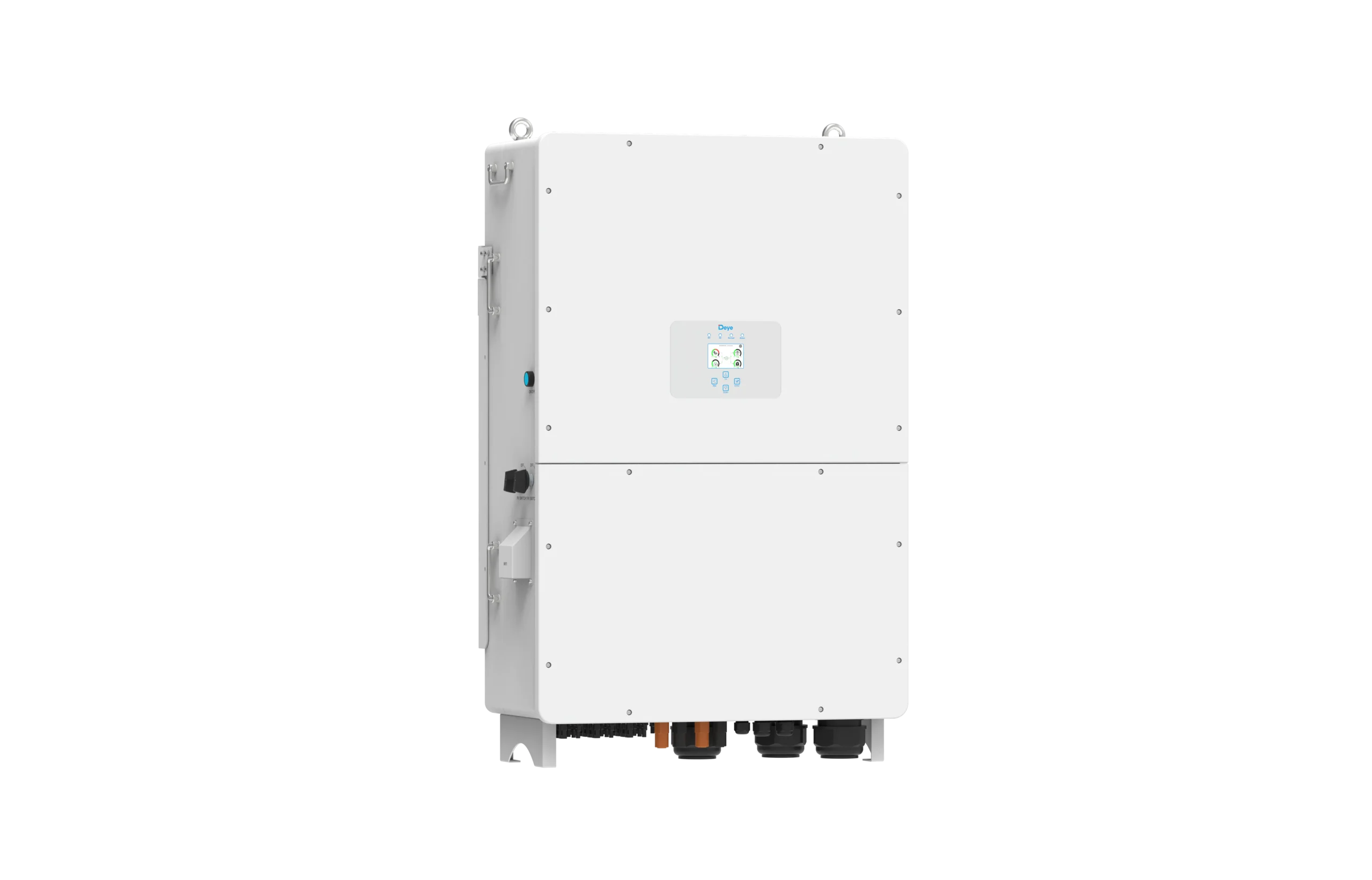

SUN-100/125K-SG02HP3-EU-GM8/GM10 | Three Phase HV

Three Phase Hybrid Inverter | 100-125kW | 8/10 MPPT | HV Battery Supported

SUN-100/125K-SG02HP3-EU-GM8/GM10, this is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications. Suitable for industrial and commercial energy storage systems.

  • AC couple to retrofifit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 200A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator



Need Help? Let’s Get in Touch

Categories: , , , , Tags: , , , , , , , Brand:

Description





Product Specification

Model SUN-100K-SG02HP3-EU-GM8 SUN-100K-SG02HP3-EU-GM10 SUN-125K-SG02HP3-EU-GM10
Battery Input Data
Battery Type Lithium-ion Lithium-ion Lithium-ion
Battery Voltage Range (V) 160-1000 160-1000 160-1000
Max. Charging/Discharging Current (A) 100+100 100+100 100+100
Charging Strategy for Li-ion Battery Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS
Number of Battery Input 2 2 2
PV String Input Data
Max. PV Access Power (W) 200000 200000 250000
Max. PV Input Power (W) 160000 160000 200000
Max. PV Input Voltage (V) 1000 1000 1000
Start-up Voltage (V) 180 180 180
MPPT Voltage Range (V) 150-850 150-850 150-850
Rated PV Input Voltage (V) 650 650 650
Max. Operating PV Input Current (A) 42+42+42+42+42+42+42+42 42+42+42+42+42+42+42+42+42+42 42+42+42+42+42+42+42+42+42+42
Max. Input Short-Circuit Current (A) 63+63+63+63+63+63+63+63 63+63+63+63+63+63+63+63+63+63 63+63+63+63+63+63+63+63+63+63
No. of MPPT Trackers / Strings per Tracker 8 / 2+2+2+2+2+2+2+2 10 / 2+2+2+2+2+2+2+2+2+2 10 / 2+2+2+2+2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W) 100000 100000 125000
Max. AC Input/Output Apparent Power (VA) 110000 110000 135000
Rated AC Input/Output Current (A) 151.6/145.0 151.6/145.0 189.4/181.2
Max. AC Input/Output Current (A) 166.7/159.5 166.7/159.5 204.6/195.7
Max. Continuous AC Passthrough (grid to load) (A) 250 250 250
Peak Power (off-grid) (W) 1.5 times of rated power, 10s 1.5 times of rated power, 10s 1.5 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Rated Input/Output Voltage 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range 50/45-55, 60/55-65 50/45-55, 60/55-65 50/45-55, 60/55-65
Total Current Harmonic Distortion (THDi) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power)
DC Injection Current <0.5% In <0.5% In <0.5% In
Efficiency
Max. Efficiency 98.70% 98.70% 98.70%
Euro Efficiency 98.10% 98.10% 98.10%
MPPT Efficiency >99% >99% >99%
Equipment Protection
Integrated DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC) TYPE II(DC), TYPE II(AC)
Interface
Display LCD + LED LCD + LED LCD + LED
Communication Interface RS485 / RS232 / CAN RS485 / RS232 / CAN RS485 / RS232 / CAN
Monitor Mode GPRS / WIFI / Bluetooth / 4G / LAN (optional) GPRS / WIFI / Bluetooth / 4G / LAN (optional) GPRS / WIFI / Bluetooth / 4G / LAN (optional)
General Data
Operating Temperature Range -40℃ to +60℃, >45℃ Derating -40℃ to +60℃, >45℃ Derating -40℃ to +60℃, >45℃ Derating
Permissible Ambient Humidity 0-100% 0-100% 0-100%
Permissible Altitude 3000m 3000m 3000m
Noise (dB) ≤65 dB ≤65 dB ≤65 dB
Ingress Protection (IP) Rating IP65 IP65 IP65
Inverter Topology Non-Isolated Non-Isolated Non-Isolated
Over Voltage Category OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC) OVC II(DC), OVC III(AC)
Cabinet Size (W × H × D mm) 734 × 1091 × 344 734 × 1091 × 344 734 × 1091 × 344
Weight (kg) 161.7 161.7 161.7
Type of Cooling Intelligent Air Cooling Intelligent Air Cooling Intelligent Air Cooling
Warranty 5 Years / 10 Years (The warranty period depends on the final installation site of the inverter. For more info, please refer to the Warranty Policy)
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
