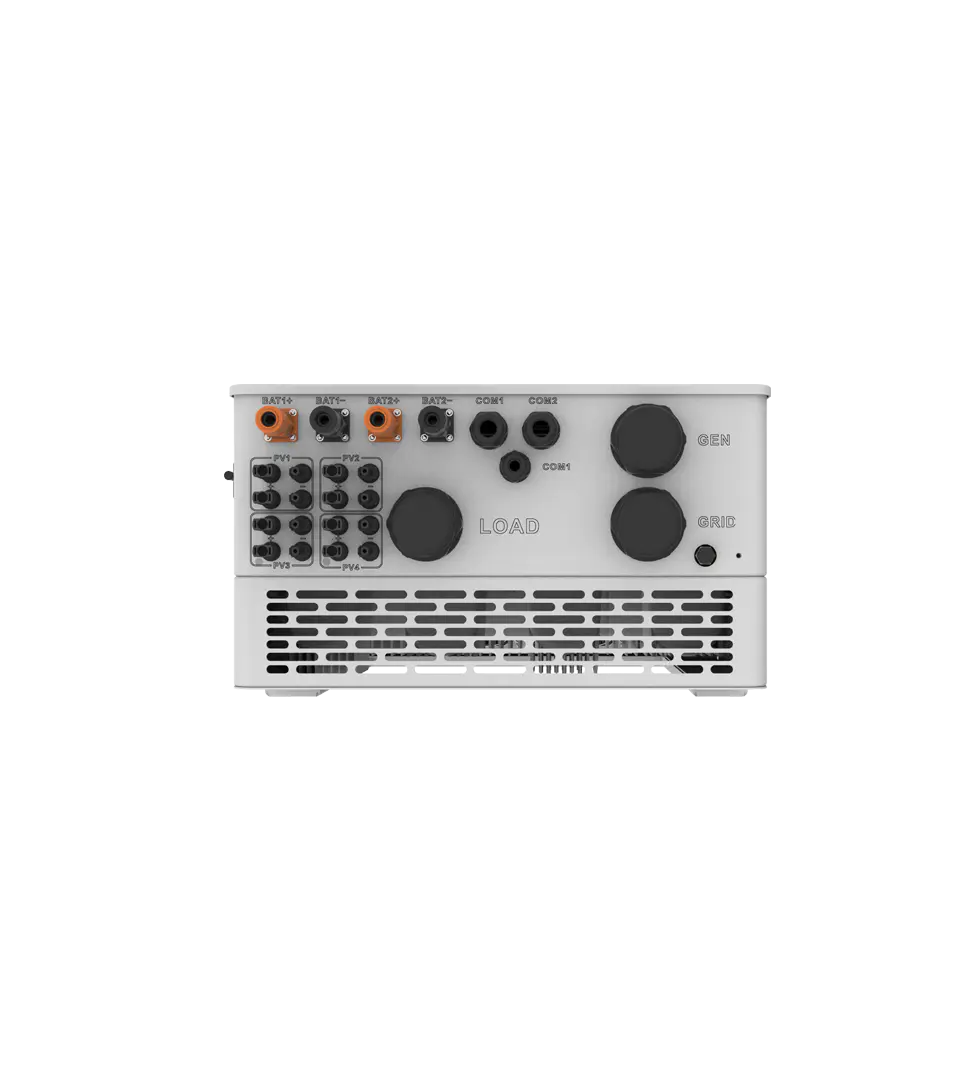

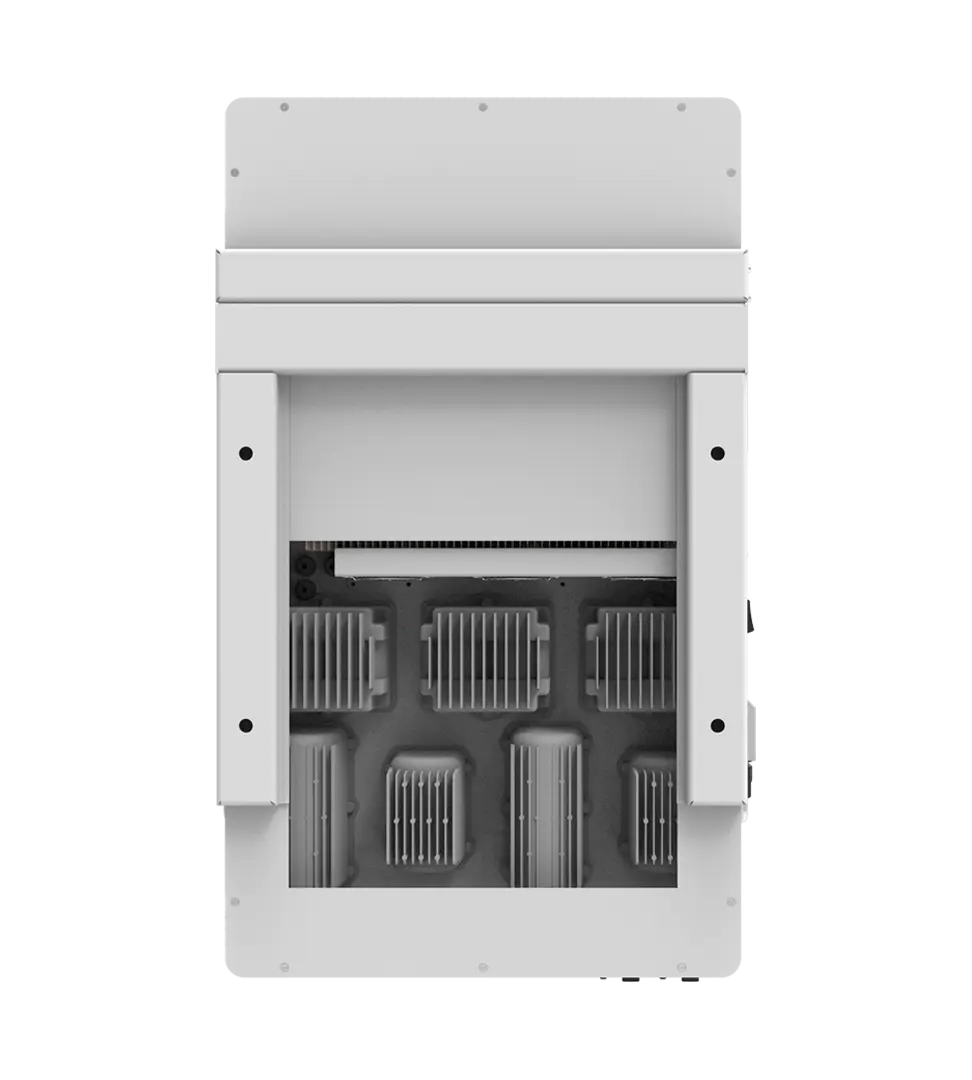

SUN-30/40/50K-SG01HP3-EU-BM3/4 |Three Phase HV

30-50kW | Three Phase | 3/4 MPPT | Hybrid Inverter | HV Battery Supported

SUN-30/40/50K-SG01HP3-EU-BM3/4 is a brand new series of three phase hybrid inveter supporting 160-800V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1:3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

  • 100% unbalanced output；each phase
  • AC couple to retrofifit existing solar system
  • *Max. 10 pcs parallel for on-grid and off-grid
  • operation; Support multiple batteries parallel
  • Max. charging/discharging current of 100A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator

Need Help? Let’s Get in Touch

Categories: , , , , Tags: , , , , , , Brand:

Description





Product Specification

Model SUN-30K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4
Battery Input Data
Battery Type Lithium-ion Lithium-ion Lithium-ion
Battery Voltage Range (V) 160~800 160~800 160~800
Max. Charging Current (A) 50+50 50+50 50+50
Max. Discharging Current (A) 50+50 50+50 50+50
Number of Battery Input 2 2 2
Charging Strategy for Li-Ion Battery Self-adaption to BMS Self-adaption to BMS Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 39000 52000 65000
Max. DC Input Voltage (V) 1000 1000 1000
Rated DC Input Voltage (V) 600 600 600
Start-up Voltage (V) 180 180 180
MPPT Range (V) 150-850 150-850 150-850
Full Load DC Voltage Range (V) 360-850 360-850 450-850
PV Input Current (A) 36+36+36 36+36+36+36 36+36+36+36
Max. PV ISC (A) 55+55+55 55+55+55+55 55+55+55+55
No. of MPP Trackers 3 4 4
No. of Strings per MPP Tracker 2+2+2 2+2+2+2 2+2+2+2
AC Output Data
Rated AC Output Active Power (W) 30000 40000 50000
Max. AC Output Active Power (W) 33000 44000 55000
AC Output Rated Current (A) 45.5/43.5 60.7/58 75.8/72.5
Max. AC Output Current (A) 50/47.8 66.7/63.8 83.4/79.7
Max. AC Current (A) 60 70 83.3
Max. Continuous AC Passthrough (A) 200 200 200
Peak Power (off grid) 1.5 times of rated power, 10 S 1.5 times of rated power, 10 S 1.5 times of rated power, 10 S
Power Factor Adjustment Range 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/380, 230/400 Vac 220/380, 230/400 Vac 220/380, 230/400 Vac
Rated Input/Output Grid Frequency/Range 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Grid Connection Form 3L/N/PE 3L/N/PE 3L/N/PE
Total Harmonics Current Distortion (THDi) <3% (of nominal power) <3% (of nominal power) <3% (of nominal power)
DC Current Injection <0.5% In <0.5% In <0.5% In
Efficiency
Max. Efficiency 97.60% 97.60% 97.60%
Euro Efficiency 97.00% 97.00% 97.00%
MPPT Efficiency 99.90% 99.90% 99.90%
Protection
Integrated Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional) Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional) Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
Over Voltage Category DC Type II / AC Type III DC Type II / AC Type III DC Type II / AC Type III
Certifications and Standards
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -40 to +60℃, >45℃ Derating -40 to +60℃, >45℃ Derating -40 to +60℃, >45℃ Derating
Cooling Smart cooling Smart cooling Smart cooling
Noise (dB) ≤65 dB ≤65 dB ≤65 dB
Communication with BMS CAN CAN CAN
Weight (kg) 80 80 80
Cabinet Size (W × H × D mm) 527 × 894 × 294 (Excluding Connectors and Brackets) 527 × 894 × 294 (Excluding Connectors and Brackets) 527 × 894 × 294 (Excluding Connectors and Brackets)
Protection Degree IP65 IP65 IP65
Installation Style Wall-mounted Wall-mounted Wall-mounted
Warranty 5 Years 5 Years 5 Years
